100 T/24H Solid Sodium Silicate Production Line — Indonesia
100 T/24H Solid Sodium Silicate Production Line in Indonesia

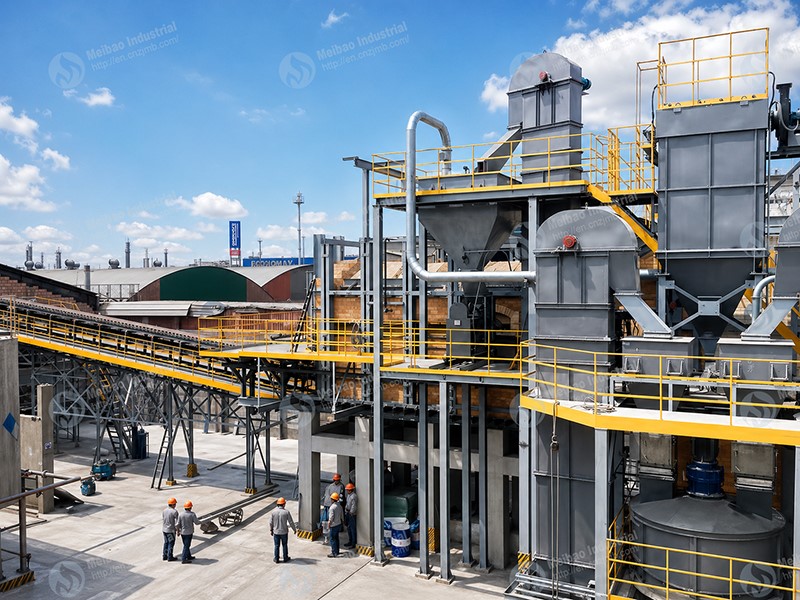

Meibao completed a 100 T/24H solid sodium silicate production line in Indonesia. The line uses soda ash and quartz sand as the main raw materials and integrates automatic weighing and batching, material feeding, high-temperature melting, regenerative heat recovery, chain-plate cooling and forming, product collection and centralized process control.
The completed project demonstrates Meibao’s integrated engineering capability across process design, equipment manufacturing, installation guidance, commissioning and operator training.
Project Information
| Project Location | Indonesia |
| Production Capacity | 100 T/24H |
| Final Product | Solid Sodium Silicate |
| Product Form | Glassy Solid Lumps and Granules |
| Main Raw Materials | Soda Ash and Quartz Sand |
| Melting Temperature | 1350–1450°C |
| Furnace Type | Regenerative Melting Furnace |
| Main Process | Automatic Batching, Feeding, Melting, Cooling and Forming |
| Control Method | Centralized Process Control |
| Project Scope | Process Design, Equipment Manufacturing, Installation Guidance, Commissioning and Operator Training |
| Project Status | Completed and Put into Operation |
Project Overview
The production line was configured around a capacity of 100 tonnes per 24 hours. Soda ash and quartz sand are automatically weighed according to the production formula and transferred to the furnace feeding system.
Inside the furnace, the mixed raw materials react and melt at 1350–1450°C. The molten sodium silicate is discharged from the molten pool and transferred to the chain-plate cooling and forming conveyor. After cooling and solidification, the material forms glassy solid sodium silicate lumps or granules for collection and downstream handling.
A regenerative heat-recovery system is integrated with the furnace to recover heat from the high-temperature flue gas and preheat the combustion air and fuel gas.
Process Flow
Soda Ash and Quartz Sand
→ Automatic Weighing and Batching
→ Material Conveying
→ Furnace Feeding
→ High-Temperature Melting
→ Molten Sodium Silicate Discharge
→ Chain-Plate Cooling and Forming
→ Finished Product Collection
Flue Gas Process:
High-Temperature Furnace Flue Gas
→ Regenerator
→ Combustion Air and Fuel Gas Preheating
→ Flue and Chimney Discharge
Process Description
1. Automatic Weighing and Batching

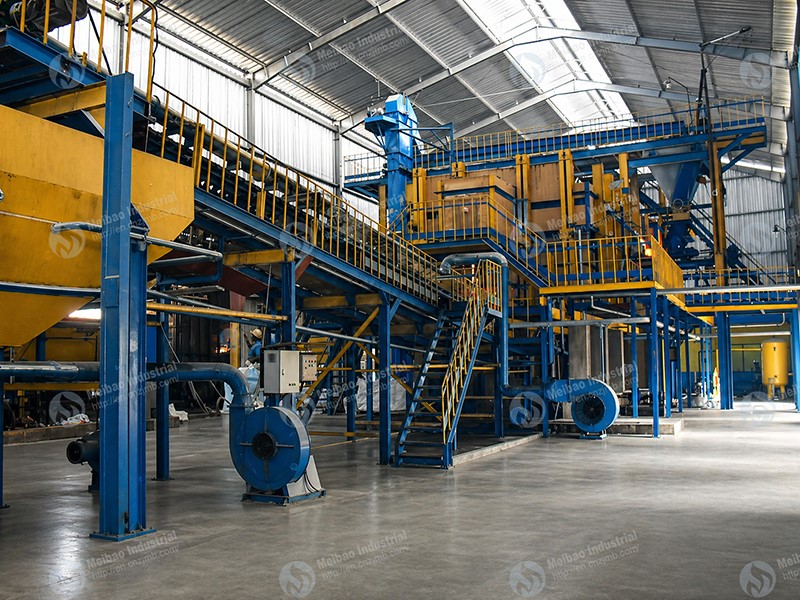

Soda ash and quartz sand are accurately weighed through the automatic metering system. The measured raw materials are combined according to the production formula before entering the conveying system.
2. Material Conveying and Furnace Feeding
The prepared raw materials are transported to the furnace feeding section. The feeding system coordinates with the batching system to maintain an orderly material supply to the melting furnace.
3. High-Temperature Melting

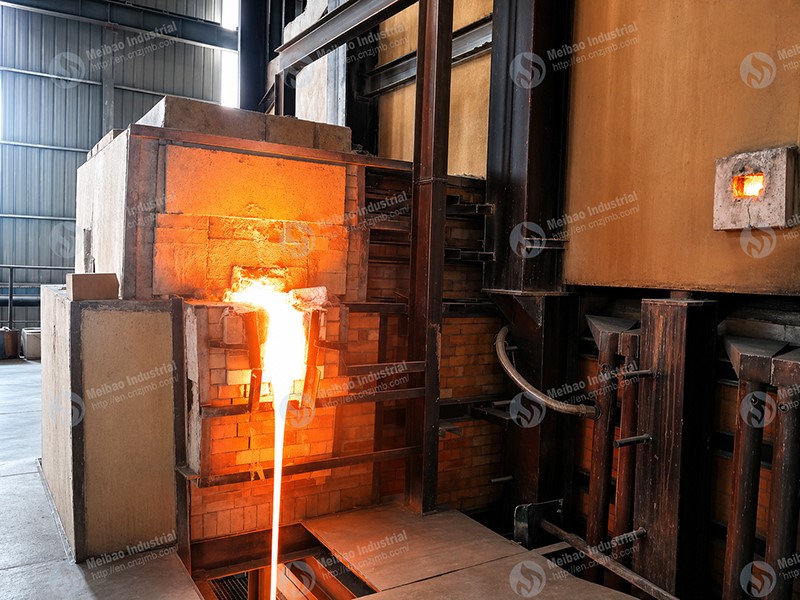

The raw materials enter the furnace and react at a temperature of 1350–1450°C. The material gradually melts and forms molten sodium silicate in the molten pool.
4. Regenerative Heat Recovery
The furnace tail flue gas leaves the high-temperature section at approximately 1200°C. The regenerator recovers this heat to preheat the combustion air to approximately 1100°C and the fuel gas to approximately 900°C.
After heat recovery, the final exhaust temperature is reduced to below 180°C. The recovered heat is returned to the combustion process through the regenerative furnace system.
5. Cooling and Forming

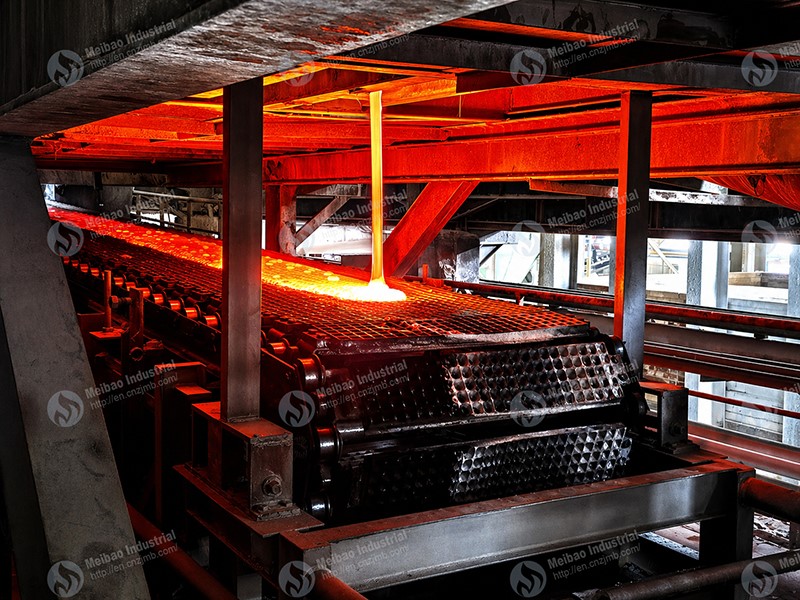

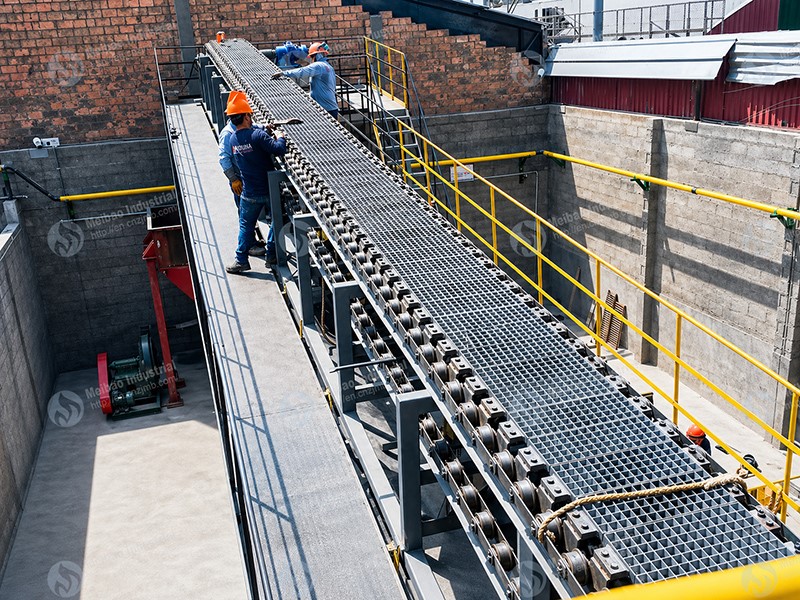

The molten sodium silicate is discharged from the molten pool onto the chain-plate cooling and forming conveyor. During conveying, the material cools and solidifies into glassy sodium silicate lumps or granules.
6. Product Discharge and Collection
The solidified product is transferred to the discharge hopper for collection and subsequent handling, storage or further processing.
7. Centralized Process Control

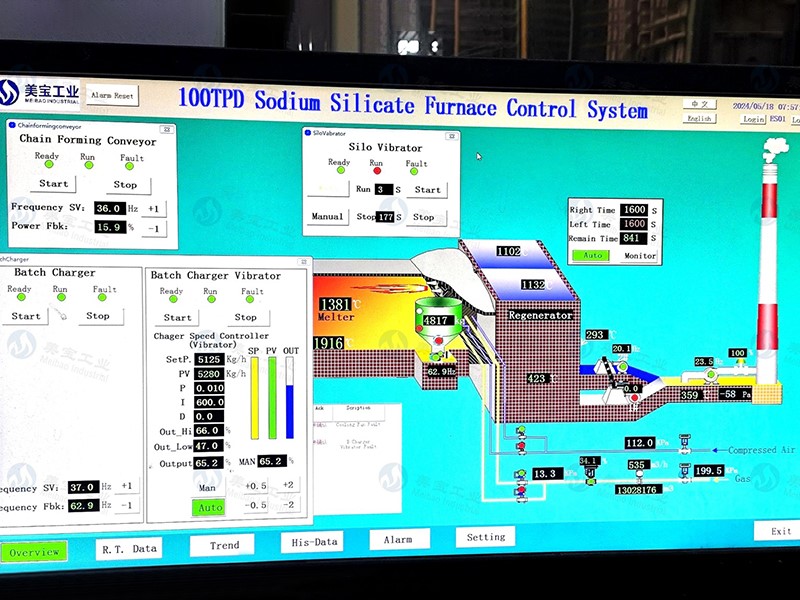

The control system provides centralized monitoring of batching, material feeding, furnace operation, combustion conditions and production-line status. The operating interface allows production personnel to observe and manage the main process sections from one control platform.
Main Equipment and Systems
Automatic raw-material metering and batching system
Raw-material conveying and feeding system
Bucket elevator
Regenerative melting furnace
Molten pool
Combustion system
Reversing system
Regenerator
Flue and chimney system
Chain-plate cooling and forming conveyor
Finished-product hopper
Centralized process control system
Project Completion
The Indonesia project established a complete solid sodium silicate production process from raw-material batching to finished-product discharge.
The completed production line provides:
- A production capacity of 100 T/24H
- Automatic weighing and batching
- High-temperature melting at 1350–1450°C
- Regenerative furnace heat recovery
- Chain-plate cooling and forming
- Centralized monitoring and process control
- Coordinated operation of the main production sections
Meibao’s Project Capabilities
Meibao coordinated the main process sections—including batching, feeding, furnace melting, heat recovery, cooling, forming and control—as one integrated production system.
The project reflects Meibao’s capabilities in:
- Solid sodium silicate process engineering
- Furnace and combustion-system design
- Equipment manufacturing and system integration
- Production-line layout and equipment coordination
- Overseas installation guidance
- Commissioning and operator training
- Technical support for complete production lines
Planning a solid sodium silicate production project?
Send us your required capacity, product modulus, raw-material information, fuel conditions and available plant space. Meibao’s engineering team will prepare a production-process and equipment configuration for your project.
