Start with the Rock Wool Products You Plan to Manufacture
The cupola-based process is designed primarily for rock wool boards and bonded mat products requiring binder curing. Applications include building insulation, industrial thermal insulation and sound absorption, with product performance requirements defined by the target standards.
Product Type & Application
Define the forming method, downstream processing and quality control requirements.
Density, Thickness & Dimensions
Determine the operating range of the wool laying, forming, curing and cutting equipment.
Target Finished-Product Output
Match the capacity of the melting, fiberizing and downstream sections.
Product Standards & Performance
Establish process design targets and trial-production inspection requirements.
Design capacity is based on finished-product output, taking account of the main product specifications, product mix and planned operating hours.
Rock wool board and bonded mat product configuration
-
![High Efficiency Rock Wool Production Line]()
High Efficiency Rock Wool Production LineHigh Efficiency Rock Wool Production Line Turnkey Solution for Heat Preservation Material Manufacturing | Energy Efficient & Automatedview more -
![Heating Incinerator For Rock Wool Production Line]()
Heating Incinerator For Rock Wool Production LineHeating Incinerator for Rock Wool Production Lineview more
Efficient Heat Supply System Using Cupola Exhaust Gas | Energy Saving Design -

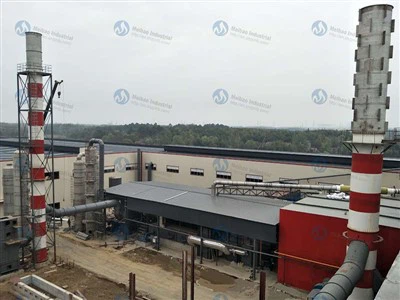

![Stone Wool Production Line]()
Stone Wool Production LineRock wool is an inorganic fiber product made of basalt as the main raw material and processed by high temperature melting. It is a kind of heat preservation, fire insulation and sound absorption...view more
What Does a Rock Wool Production Line Include?
This is an overview of the complete line. Supplied equipment, packaging arrangements and automation levels are defined in the project equipment list.
Main systems of a rock wool production line
| System | Main Function |
|---|---|
| Raw Material Storage, Dosing & Feeding | Meter and feed mineral raw materials and coke according to the batch recipe. |
| Cupola Melting System | Melt the mineral batch and provide suitable melt conditions for fiberizing. |
| Fiberizing, Binder Preparation & Application | Form fibers by centrifugal spinning, prepare and dose binder, and apply additives as required. |
| Wool Collection, Laying & Forming | Collect and lay the fibers, working with subsequent forming equipment to control thickness and density. |
| Curing & Heat Supply | Cure the binder with hot air while controlling mat thickness to set the product structure. |
| Cooling, Cutting & Product Handling | Cool and cut products to size, then transfer them for stacking and packaging. |
| Emission Collection & Treatment | Collect and treat emissions according to the characteristics of each process section. |
| Automation & Control | Coordinate production sections, monitor key parameters, and provide alarms and interlocks. |
Typical Process for Bonded Rock Wool Products
Raw Material Dosing & Feeding → Cupola Melting → Fiberizing & Binder Application → Wool Collection & Laying → Compression & Forming → Hot-Air Curing → Cooling → Cutting & Packaging
Simplified rock wool production process
The mineral batch recipe is determined from raw material analysis, with coke serving as the melting fuel. Forming and curing are coordinated around the target thickness, density and binder requirements.
Evaluate Heat Supply Around Local Energy Conditions
Melting converts the mineral batch into a melt, while curing uses controlled hot-air temperature, airflow and residence time to cure the binder. Heat supply must match the operating load of each section.
Where cupola off-gas conditions are suitable, its combustible components can be assessed for energy recovery through combustion, followed by appropriate heat exchange or hot-air conditioning. Auxiliary fuel provision must accommodate start-up, load changes and insufficient off-gas heat input, with appropriate emission treatment and safety interlocks.
Operating cost assessments consider raw materials, coke, auxiliary fuel, electricity and binder consumption, together with labor, maintenance and emission-control costs. Potential energy savings are evaluated against actual operating conditions and the project heat balance.
Heat supply and operating cost considerations
Define the Scope for Your New Line or Plant Upgrade
New Production Lines
Process configuration, equipment selection and plant layout, with coordination of production sections and utility interfaces.
Existing Line Upgrades
Assessment of production bottlenecks, equipment compatibility and connections between existing and new systems.
Dedicated Heat Supply Projects
Evaluation of heat demand, off-gas or fuel conditions, and integration with existing process and control systems.
Meibao can provide process design, equipment manufacturing, installation guidance, commissioning and operator training within the agreed scope.
The technical proposal and quotation define:
- Equipment Supply: Equipment list, automation level and optional items.
- Site Responsibilities: Civil works, utility connections, emission-control facilities and installation.
- Acceptance Criteria: Agreed raw materials, product specifications, operating conditions, output and quality requirements.
Tell Us About Your Rock Wool Production Project
To begin the discussion, please share:
- Location & Project Type: Country and whether you need a new line, a section upgrade or a heat supply system.
- Target Products: Boards or bonded mats, intended application, main densities and dimensions.
- Required Output: Finished-product output per hour or year, and planned operating hours.
- Raw Materials & Energy: Available mineral raw materials, coke and other energy sources.
- Site Conditions: New site or existing factory, with available dimensions, layout drawings or photographs.
You can start with the information currently available. Detailed raw material and coke analyses, binder information, utility conditions and local emission requirements can follow during technical evaluation.
For upgrades, please also describe your current output, main equipment and the problem you want to address.
