Direct Production of Liquid Sodium Silicate

Meibao’s wet-process sodium silicate production line uses quartz raw materials suitable for hydrothermal processing and caustic soda as the main feedstocks. With steam heating, the materials react under controlled temperature and pressure to produce liquid sodium silicate, also known as water glass. The product is then adjusted and filtered before entering finished product storage.

Meibao configures the process and equipment around raw material quality, target product specifications, production capacity and plant layout, coordinating process connections and site utility requirements.

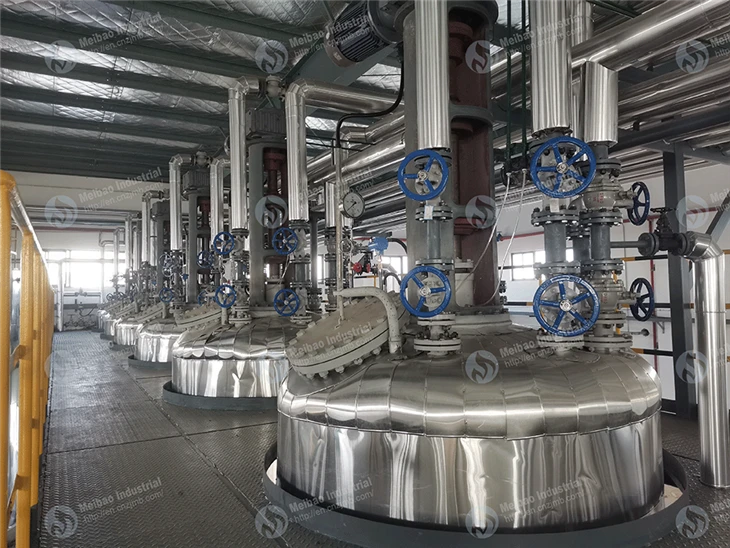

Wet-process liquid sodium silicate reaction equipment

Wet-process reaction equipment for liquid sodium silicate production

This solution is intended for direct production from quartz raw materials and caustic soda. If you plan to purchase solid sodium silicate and dissolve it to produce a liquid product, please see our Solid Sodium Silicate Dissolving System.

First 123 Last

Meibao Wet-Process Application Range

These values define the main application range of this solution. The specific combination of modulus, concentration and capacity is evaluated against raw material quality and production conditions. Capacity is expressed as the mass of liquid product at the agreed concentration, based on the effective daily operating hours. Requirements outside this range need a separate process evaluation.

Item Application Range / Configuration
Finished Product Liquid sodium silicate (water glass)
Production Route Direct wet-process reaction
Main Raw Materials Quartz raw materials suitable for wet processing and caustic soda
Main Heat Source Steam
Product Modulus (SiO₂/Na₂O Molar Ratio) ≤2.4
Product Concentration ≤45%
Production Capacity Customized to project requirements
Automation Automatic batching and reaction control available

If you are unsure of the required modulus or concentration, you can provide the intended application, an existing product specification sheet or a test report to help establish the product requirements.

Simplified Process & Scope of Supply

Raw Material Preparation & Caustic Soda Storage / Preparation→
Weighing & Batching→
Steam Heating & Pressurized Reaction→
Product Adjustment & Filtration→
Finished Liquid Product Storage

Quartz raw materials and caustic soda solution meeting the process requirements are proportioned and fed into the reaction system. Steam heating and pressurized reaction produce liquid sodium silicate, which is then adjusted, filtered and stored. The target modulus is controlled through the raw material proportions and reaction process.

Simplified wet-process liquid sodium silicate production process

Simplified wet-process production process from raw material preparation to finished liquid product storage

Meibao can supply the above process systems with associated electrical and control equipment, together with design, manufacturing, installation, commissioning and operator training services as required. The caustic soda storage and preparation system is configured according to the form and concentration of the incoming material.

The proposal and quotation define the scope for equipment, storage tanks, interconnecting piping, electrical controls and installation services. Responsibilities for steam supply and any boiler provision, water and power connections, and civil works are agreed separately.

Project Reference

Wet-Process Liquid Sodium Silicate Plant — Nigeria

Project Capacity: ≥30 tonnes/day

Meibao configured the wet-process production system around the customer’s product requirements and site conditions. See the project page for details of the scope of supply.

Wet-process liquid sodium silicate plant in Nigeria

Wet-process liquid sodium silicate plant — Nigeria project reference

Frequently Asked Questions

Is production capacity alone enough to determine the configuration and quotation?
Capacity is a starting point. Product modulus, concentration, daily operating hours, raw material specifications and steam conditions are also needed to determine the configuration. For projects using existing buildings or equipment, the scope of reuse must also be established.
Do raw material and steam conditions affect equipment selection?
Yes. The silica content, impurities and particle size of the quartz raw material, along with the caustic soda specifications, affect process evaluation. Steam pressure and available supply affect heating and production planning and should be established before equipment selection.
Can existing buildings and utilities be used?
Existing facilities can be assessed for integration. Plant layout, steam supply, storage tanks, and water and power availability are reviewed to determine what can be reused and what additional equipment or modifications are required.

Discuss Your Liquid Sodium Silicate Project

Share your target product specifications, capacity requirements, and available raw material and steam conditions. If some details are not yet available, you can start with a brief description of your project. Meibao will work with you to establish product and site requirements, then evaluate the process configuration, scope of supply and quotation.
